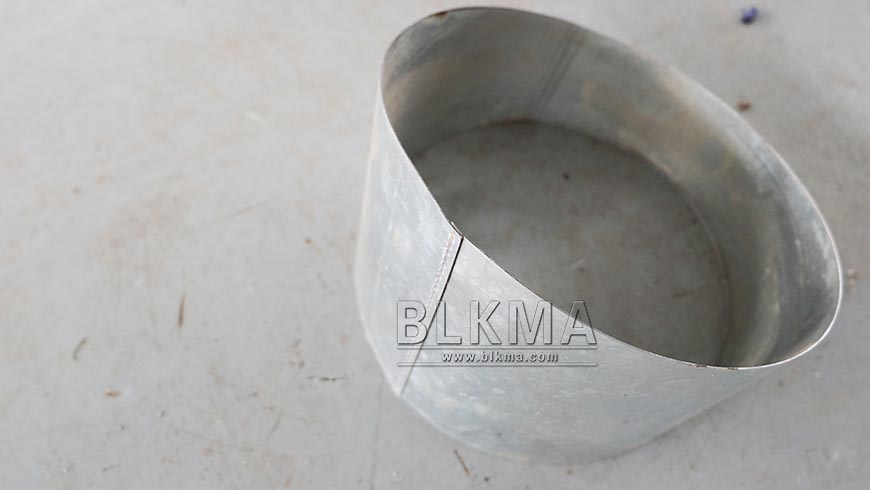

This round duct stitch welding machine is used for welding vertical seam of round duct. Advantage is high-speed, material-saving, seaming tighter and seaming joint firmer. After welding, a flange rolling machine can be employed to form connection flanges on the duct ends for secure assembly.
| Model：BASWM-600 |
| 1. Input voltage: 3-phase, 380V ± 10 ％ |
| 2. Rated welding capacity: 40KVA |
| 3. Rated Load Persistence Rate: 40 ％ |
| 4. Speed of feeding wire: 6.0--12 m/min |
| 5. Diameter of wire: Φ3.0 mm |
| 6. Secondary output voltage: 1.6--3.2 V ( when controller energy is biggest ) |
| 7. Secondary voltage: 6 grade |
| 8. Minimum diameter of welding: 100 mm |
| 9. Maximum length of welding: 600 mm |
| 10.Sheet thickness: 0.5—1.0mm |
| 11.Motor: AC electromagnetic motor |
| 12.Dimension: 2200*1100*1600 mm |
