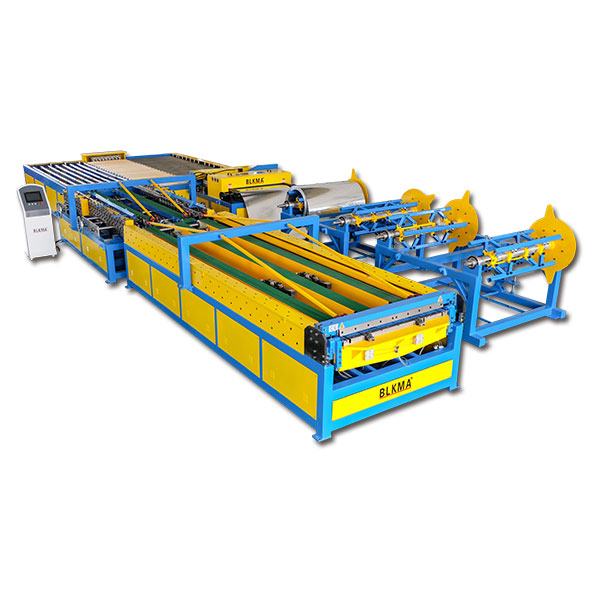

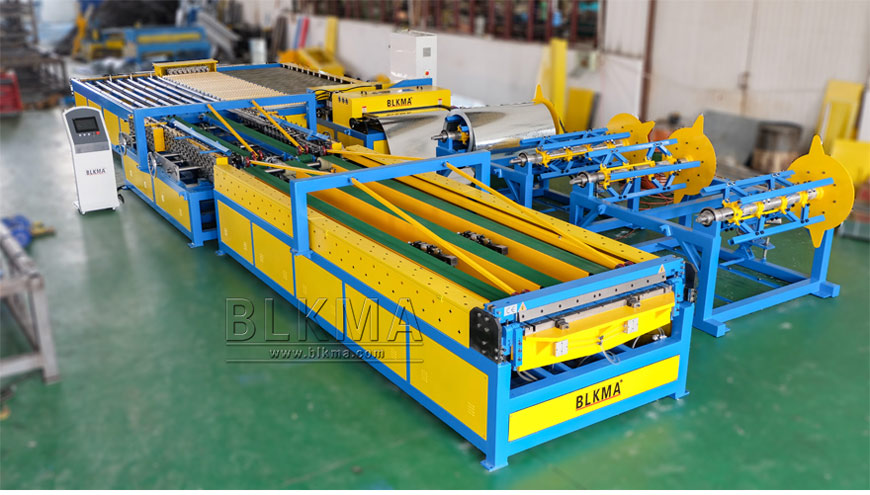

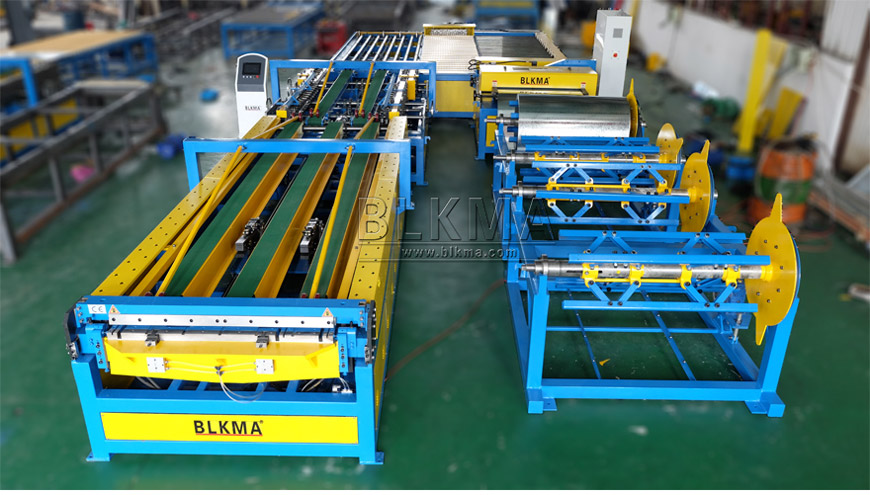

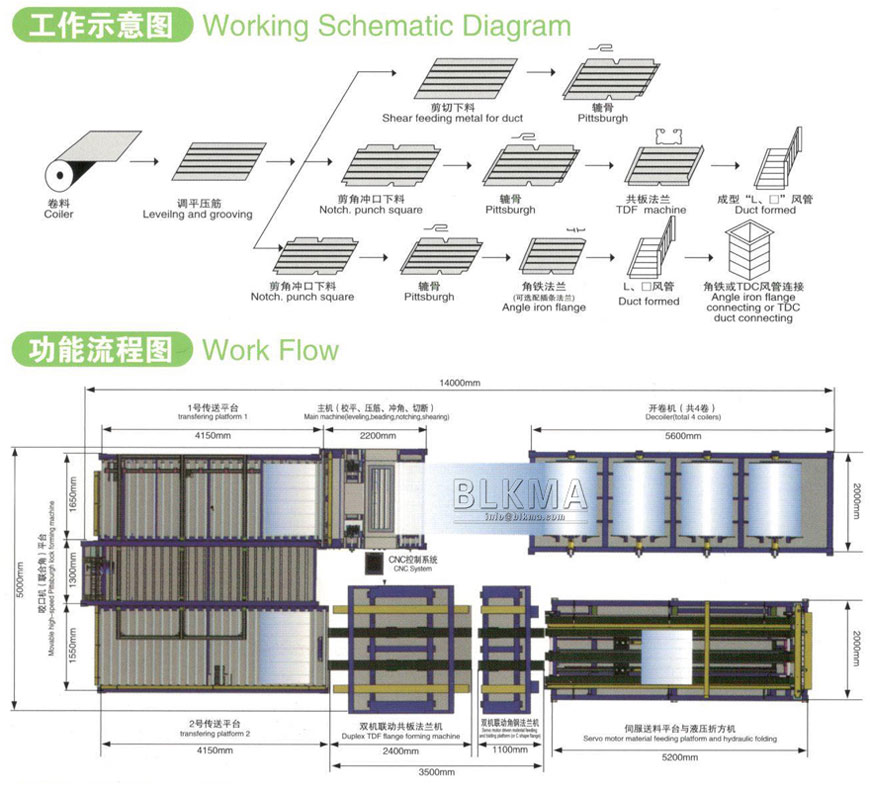

It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling, leveling, beading, punching, shearing, locking, forming TDF / angle steel / C-shaped flange and folding.
|
Japan Mitsubishi CNC control system |
|
Japan Omron encoder |
|
Taiwan Hiwin linear guideways |
|
Schneider electrical system |
|

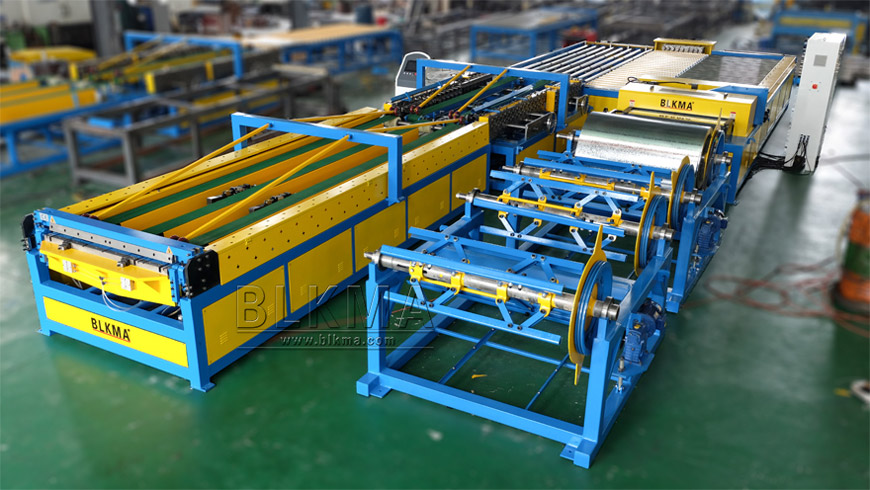

Two electric coil cradles, 4 material trays (5-7 t each roll) |
|
One rack |
|
One host (line 2 host) |
|

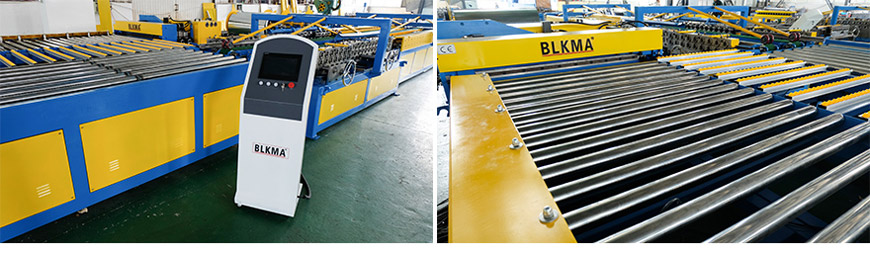

Two stainless steel roller convey platforms |
|
One fixed joint locking machine |
|
One duplex TDF flange forming machine |
|
One duplex angle steel flange forming machine |
|
One servo feeding platform |
|
One hydraulic folding machine |
|
One set of computer controlling system |
|
Model |
Sheeting thickness (mm) |
Max width (mm) |
Max working speed (m/min) |
Max weight of coil (T) |
Dimension (mm) L*W*H |
Power (kw) |
Weight (T) |
||
|
ADL-5U-1300 |
0.5-1.2 |
1300 |
15 |
7 |
14000 |
5000 |
1500 |
30 |
13 |
|
ADL-5U-1500 |
0.5-1.2 |
1500 |
15 |
7 |
14000 |
5400 |
1500 |
30 |
14 |
